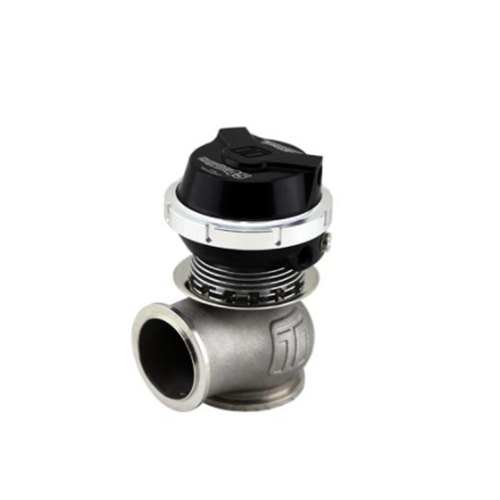

WG45 2011 Hyper-Gate 45mm Motorsport wastegate - 14psi Black

The GenV WG45 HyperGate45 Motorsport External Wastegate is a cost effective external wastegate, designed with huge thermal demands in mind. Based on the modular architecture of the GenV range, the Motorsport version has an extra CFD driven heatsink built in proven to dissipate more heat and further isolate the actuator housing from thermal stress. The GenV provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity. The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it. A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs. Available In Black, Blue, Red and Purple Wastegate Position Sensor Version & Upgrade Compressed Gas (ex: Co2) Version Motorsport Version (CFD driven Heatsink design) eWG (Electronically Actuated) Version HP (High Pressure Version) Up to 50psi Features CFD Driven heatsink design Class Leading, Thermal Performance Class Leading, CFD & Bench Validated Flow Performance Class Leading Fatigue Resistance Nitronic 60 Valve Guide & High Temp 347 SS Body 17/7 PH Stainless Steel Springs Liquid Actuator Cooling Option Strap Type V-band clamps Size 1/8NPT
