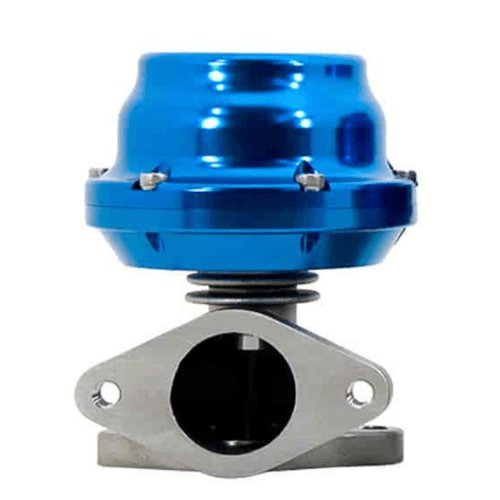

F38-1.6B Wastegate 38mm 1.6 Bar (23.20 psi) Blue

The classic 2-bolt flange wastegate. TiAL first produced the F38 back in 2001 and it's still going strong today. This wastegate has a 38mm valve - same as the MV-S, and its body is about an inch taller. Constructed from high temperature alloys for the valves and lower housings, CNC-machined billet aluminum actuator housings and Nitronic 60 valve guides and seats. These high temperature materials were selected for their unique combination of high corrosion, wear and galling resistance properties. The billet aluminum actuator housing is lightweight and available anodized in silver, black, red, blue or purple. Inside is a 17-7 PH stainless steel actuator spring capable of consistent pressure at elevated temperatures. The TiAL F38 Wastegate spring base pressures range from 3.626 to 23.206 psi (0.25 to 1.6 BAR). All TiAL wastegates are designed to optimize actuator-to-valve area ratio to provide maximum control and a wide dynamic flow capacity. Features: High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs High temperature silicone Nomex reinforced actuator diaphragm 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temps, resist ''relaxing'' at temperature to 900°F (483°C) Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing All Stainless Steel hardware Inlet Flange: 1.50'' OD; Outlet Flange: 1.50'' OD 2.80'' center-to-center bolt hole flange Mating weld flanges included Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black) Included with Every Tial F38 Series Wastegate: F38 Wastegate Assembly F38 Valve Seat Two TiAL Air Fittings Two Mounting Bolts
