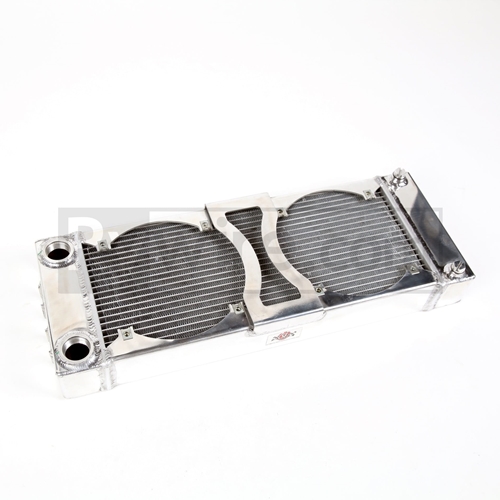

CSF Universal Dual-Pass Tuck Radiator

Overall Dimensions: 24″ Length x 9″ Height x 2.75″ Wide

 Rated at 350 HP

• 2 Row 52mm High Performance Radiator Core by CSF with B-Tube Technology and 8mm Tall Multi-Louvered Fins
• Dual-Pass Design Allows the Coolant to Flow Across the Core 2 Times Before Exiting the Radiator for the Lowest Outlet Temperature Possible – Also
  Allows for Easy Plumbing With Both Inlet/Outlet Connections on the Same Side Tank
• Installation Kit Includes Both -16 AN Male Connections, as Well as 1.25’ OEM Style “Slip-on” Hose Connections
• Multiple Mounting Tab Options and Universal Brackets Included for Fitment With Any Set-up
• Dual Top/Bottom Drain Plug Design on Same Side Tank Featuring CSF’s Industry Best CNC Machined Race-Style Drain Plugs – Top Drain Tab can be Used as Custom Filler or Breather Valve
• Billet Designed Welded Dual-Fan Shroud (Option to Include Single or Dual 8″ High Performance Fans)
• CSF’s 1-Hour “Mirror Finish” Hand Polish
• Suitable for Street Use, Heavy-Traffic, as well as Performance Racing



The Racing & High Performance Division of CSF Inc. strives to build and engineer the most advanced, efficient, and reliable cooling systems in the world. CSF manufacturers a wide variety of sophisticated cooling systems with more than 250 different applications, ranging from high performance all-aluminum direct-fit radiators, intercoolers, and oil coolers, to complete custom manufacturing for racecars, power sports, off-road, marine, and industrial use. All CSF cooling systems are designed and engineered to maintain optimal engine temperatures, even under the most extreme driving conditions.

With over 50 years of experience and over 40 million cooling systems sold globally, CSF has earned the industry reputation of being
