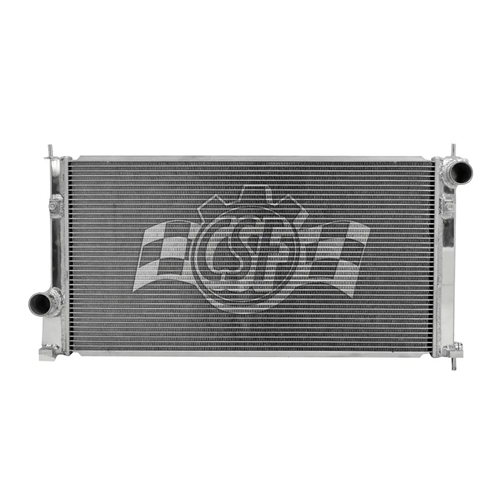

CSF triple Pass High-Performance All Aluminum Radiator Exclusively for Good-Win Racing- Miata NC/MX-5

2006-2015 Mazda Miata / MX-5 (NC)

The best direct-fit high performance radiator for the MX5. Period.

High-demand cars such as turbocharged, supercharged, and racing applications need maximum cooling ability. For many years the next-step beyond the standard aluminum radiator upgrade was to move on to a custom multi-pass racing radiator. Those radiators packed massive cooling ability, but also come with massive price tags and are not direct-fit; required custom brackets, didn't fit with factory fans, and so on.

Our new Triple-Pass radiator is the first of its kind; a cross-flow, triple-pass configuration using racing radiator technology throughout that still drops in without any other modifications, and doesn't have the price tag that comes with "custom". Fits with the factory brackets, fans, and hoses.

- Triple-pass flow design makes the water pass fully from one side to the other through the radiator THREE times instead of ONCE, more efficiently using ALL the frontal area of the radiator and giving the water more time to shed heat.

- Advanced fin and tube technology:
Utilizes CSF's specially-engineered "B-tubes" which are made from thinner and lighter aluminum but are still stronger than conventional 0-shape tubes. The core features louvered fins with a denser packing. More fins per inch than standard cores means more surface area for cooling and thus dramatically higher efficiency.

- 32mm core for peak efficiency and light weight:
Conventional high-performance radiators with low fin counts and standard tubes have no choice but to increase the core thickness to get more cooling. This core is about double thick compared to stock yet still less than two inch race cores. The two inch core units slows down the air more, and that hurts efficiency, so you get diminishing returns as the core gets thicker and thicker. A thicker core also means a heavier radiator. The new generation of radiator advances used in this unit allow us to achieve a new "best" for cooling ability without any need to dramatically increase core size. This 32mm core allows for fast airflow, further improving performance, and keeps the weight well below classic 2 inch thick racing radiators. The relatively thin core also means the unit can drop in place of the factory unit without the need for relocating anything.



The Racing & High Performance Division of CSF Inc. strives to build and engineer the most advanced, efficient, and reliable cooling systems in the world. CSF manufacturers a wide variety of sophisticated cooling systems with more than 250 different applications, ranging from high performance all-aluminum direct-fit radiators, intercoolers, and oil coolers, to complete custom manufacturing for racecars, power sports, off-road, marine, and industrial use. All CSF cooling systems are designed and engineered to maintain optimal engine temperatures, even under the most extreme driving conditions.

With over 50 years of experience and over 40 million cooling systems sold globally, CSF has earned the industry reputation of being
