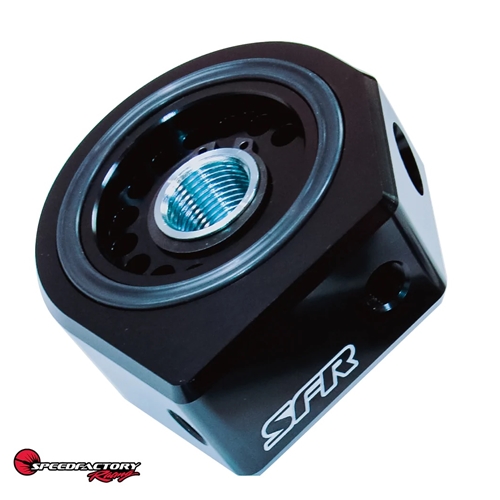

SpeedFactory Racing Honda / Acura Oil Sandwich Plate Assembly Only

The SpeedFactory Racing Oil Sandwich Plate Assembly is designed for those adding a VTEC head to an LS(B18A/B) or B20 engine set-up, and / or for those with other Honda / Acura engine applications wanting the ultimate solution for adding a turbocharger oil feed line and oil sensors.

Our design was fully engineered with 46% more oil flow through the sandwich plate body to the oil filter, enough extra 1/8 NPT ports to allow you not only feed a turbo but also fit an oil pressure or temp sensor, and precision hardened chromoly alignment dowels that won’t deflect and will maintain precise cylinder head location under heavy power loads.

Product Features:

• Precision CNC machined from 6061-T6 billet aluminum
• Black Anodized finish adds durability and eliminates corrosion
• Laser-etched SpeedFactory Racing logo
• Sandwich plate has three (3) ports:
  • x1 -6 ORB port (use for LS / VTEC feed line)
  • x2 1/8 NPT ports (use for filtered clean oil supply to turbo, oil temp sensor, oil pressure sensor, etc)

Kit Contents:

• x1 Oil Sandwich Plate Assembly with O-Ring
