P3 V3 OBD2 - Subaru WRX/STI/Forester Gauge (2008-2014)

P3 V3 Gauge Features

• Plug and Play Install - plugs directly into your OBD2 port (want to keep your OBD2 port open? hard-wire harness kit also available)
• OEM Integration - installs in your vent for a sleek install while retaining air flow
• Versatility - read boost from multiple OEM sensors through OBD2 port or using optional P3 analog boost sensor
• Code Reading/Clearing - read and clear diagnostic trouble codes (DTCs) on the fly

P3 V3 Gauge Readouts (all readouts can be individually configured to read in either Imperial or Metric units)

• Boost (through OBD2 port using OEM sensors or with P3 analog boost sensor)
• Coolant temperature
• Air/Fuel ratio (can be read in AFR or Lambda)
• Vehicle speed (can be calibrated in 1% increments from -9% to +20%)
• Intake air temperature
• Throttle angle
• Ignition timing
• Engine RPM
• Exhaust gas temperature
• Battery voltage
• Programmable shift light
• Analog input 1 (brown wire) can allow gauge to read any 0-5 volt linear output sensor
• Analog input 2 (blue wire) can allow gauge to read any 0-5 volt linear output sensor
• Acceleration timers (0-60mph/0-100mph/60-130mph)
• Braking timers (60-0mph/100-0mph)

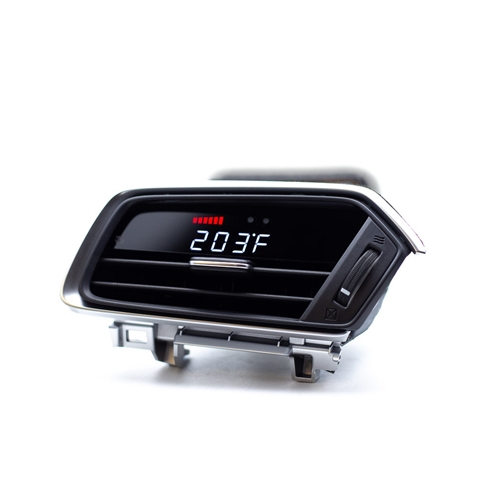

OEM Vent Option

• We install the display in an OEM vent to make your install even easier

Optional Add-Ons

• P3 Analog Boost sensor - plugs directly into gauge harness, no wiring required
• Boost tubing kit - Approx. 5' of 5/32" O.D. flexible plastic boost tubing with vacuum "T" and 3 sections of 5/32" I.D. vaccum hose. Includes 3 zip ties
• P3 ESVA (Ethanol Sensor Voltage Adaptor) allows your gauge to read ethanol content and fuel temperature directly from the common Continental/GM flex fuel sensor. *Ethanol sensor NOT included
• Trim Removal Kit - this tool kit will help you remove your vent and interior trim while minimizing the chance of scratching or damaging your trim
• OBD2 Splitter - attach multiple devices to your OBD2 port. *some devices will not function while another device is attached to the OBD2 port

You asked, we answered.

The P3 V3 Gauge adds even more user control to what the OBD2 Multi-Gauge already offered. Read DTCs on command, remove pids that you don't care to see, configure units settings of individual measurements, calibrate your vehicle speed, read AFR in Lambda.

There when you need it, hidden when you don't.

No more bulky pillar or column pods... No more squinting to read tiny pixelated screens...  While retaining the OEM plus design that blends into your interior, the P3 V3 packs a punch with it's bold, bright display that allows you to pick up info at a glance.

Hot or Cold? No problem!

Even though the P3 V3 installs in your air vent, we keep in mind that you need that heat and A/C while designing each gauge.

Electronics in a harsh climate? We've got that covered too.

We've torture-tested our gauges to the extreme. From frozen solid at -94 F to physically melting at hundreds of degrees, our gauges function far beyond the limits of the in-car environment.

Need more details?

Simply put, P3 builds custom-integrated gauges that are tailored to blend into the interior of your vehicle. Rather than build a “one size fits all” gauge, we take a model-specific design approach that results in an OEM look and feel. We might be a small company, but we have a big vision– to change the face of automotive aftermarket gauges, one vehicle at a time, by offering an option that doesn’t look, well… aftermarket.

The company was started and the first product was invented, originally called the “Stealth Digital Vent Gauge,” by Rick Schilg in 2007 when he couldn’t find a decent looking digital gauge for his BMW. He used some of his design and fabrication experience to custom build a unique boost gauge for his twin-turbo 2007 BMW 3 series. A few design revisions later, he finally showed it off on internet forums, and by request of fellow enthusiasts he began hand building and selling boost gauges out of the basement of his home. After about a year of boot-strapping the company from nothing, he was able to quit his day job and work full time building and selling boost gauges. Rick currently owns and operates the company, and as Director of Development, carries out all circuit design, embedded programming, and technical aspects of product design and manufacturing, which is still done in-house, for a true “Made in the USA” product.

Building and growing a business comes with plenty of learning experiences. Anyone who has started a business (and kept it successful and growing for 10+ years) will tell you that you need to stick to what you are good at– find your niche, and don’t get distracted. As “P3 Cars” we have navigated the world of automotive aftermarket shows, crazy car builds, magazines, a bunch of project cars, retail ventures, etc. We used those experiences to learn where our focus needed to be, prune off some branches that weren’t on track with the original vision, and find success down the most efficient roads.

More recently “P3 Cars” pushed to return to it’s roots as a design and manufacturing company, and rebranded to “P3 Gauges.” We brought on Jake Thomas as Director of Operations to spearhead our domestic vehicle lines and build relationships in the muscle car world, and Matt Thomas to be in charge of production and shipping. All of us at P3 share the same passions. We are builders, we are makers, and we have the honor of making and using a product that we love, just as much as our customers! We had found the efficient roads to get us back to the original vision of changing the face of aftermarket gauges, one car at a time. P3 began to build a strong network for distribution, and partner with well known brands and businesses to extend our reach.

The company has now grown to have international franchises, a network of well over 300 dealers and distributors, as well as private label manufacturing contracts for major automotive aftermarket leaders. Even with the explosive growth, P3 has always and will always design, develop and manufacture it’s products in-house, while continually expanding our lineup to meet the demands of the growing performance industry… foreign and domestic.

We love what we do, and we look forward to making the best custom gauges for the best cars, for decades to come!
