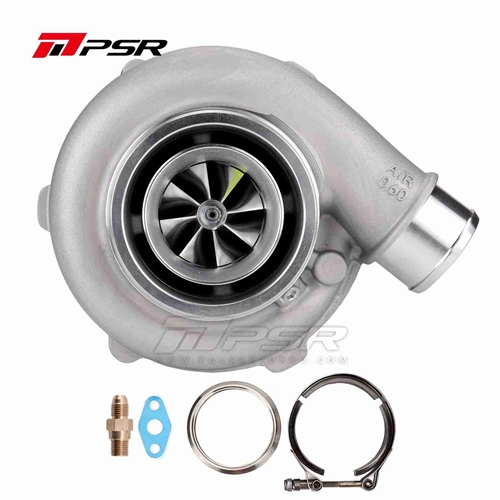

Pulsar Turbo PSR3076 Gen2 Dual Ball Bearing Turbocharger (T3 .82 V-Band)

• Dual Ceramic Ball Bearing System
• 9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel
• Gen2 Cover Integrated with the Speed Sensor Port
• 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, 0.82, 1.03 A/R dual v-band stainless steel turbine housing etc. turbine housings in option
• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: ~65 lb/min, rated @ 750 FWHP

Description

• Compressor Wheel: 58*76mm
• Turbine Wheel: 60*55mm
• Compressor Inlet: 4″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet: T3, T4 or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″OD)
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.
