PRL Motorsports 2017-25 Honda Civic Type R + 2024+ Acura Integra Type S Baffled Coolant Expansion Tank

* photo may vary from actual product PRL Motorsports
This item requires Vehicle Fitment, please select Vehicle first!
OR if you know the Part Number you need, select from Options below.
Part #:PRL-EXPTNK
SKU:PRL-EXPTNK
Availability:In Stock
MSRP: $494.50
Price: $430.00
Free Shipping over $400

Fits 2017-2025 Honda Civic Type R 2.0T (FK8 and FL5 Chassis')
Fits 2024+ Acura Integra Type S 2.0T
Fits 2016-21 Honda Civic SI 1.5T

Technical Notes:

Over time, the factory plastic coolant expansion tanks that Honda/Acura include from the factory can weaken and fail from heat and pressure cycles. The PRL Coolant Expansion Tank kit replaces the factory tank with a more robust aluminum version. Our 6061 aluminum tank will not be effected by temperature and can hold higher pressures so it will out-last the factory tank. Our reservoir also more than doubles the tank's coolant capacity to 1.32 quarts (1.25 liters), while the stock tank only holds .58 quarts (.55 liters) allowing for a greater volume of coolant to carry heat away from the engine internals while maintaining a tidy engine bay.

Our tank is constructed from 3mm thick aluminum and features internal baffling to prevent coolant sloshing and cavitation. The kit includes fittings to fit both the 2017-22 FK8 Civic Type R as well as the 2023-25 FL5 Type R and 2024+ Acura Integra Type S. The FK8 fittings can also be used to mount this Expansion Tank on your 2016-21 Honda Civic SI.

Key Notes:

  • Robust 3mm 6061 Aluminum Construction
  • Laser Cut and TIG Welded for Unmatched Fit and Finish
  • Striking Red or Black Anodized Finish with Laser Engraved Logos
  • Billet Machined Barb Fittings and Sight Glass
  • Buna-N O-Rings for Unmatched Temperature and Leak Resistance

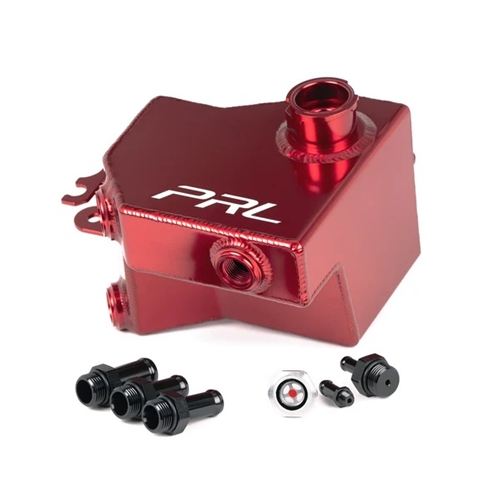

Kit Includes:

  • Fully welded and anodized expansion tank (red or black)
  • 1x 1/16” NPT 8mm barb fitting
  • 2x 8AN ORB 14mm barb fittings
  • 1x 8AN ORB 17mm barb fitting
  • 1x 8AN ORB 8mm barb fitting
  • 1x 10AN sight glass

PRL Motorsports 2017-25 Honda Civic Type R + 2024+ Acura Integra Type S Baffled Coolant Expansion Tank fits the following vehicle(s):

  • 2016 Honda Civic
  • 2017 Honda Civic
  • 2018 Honda Civic
  • 2019 Honda Civic
  • 2020 Honda Civic
  • 2021 Honda Civic
  • 2022 Honda Civic
  • 2023 Honda Civic
