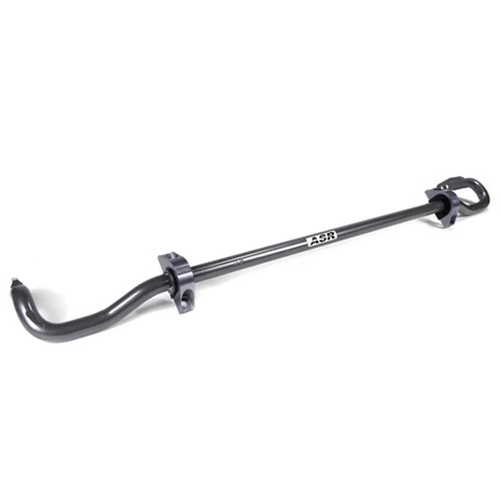

ASR Swaybar Rear 24mm - Honda Civic 88-95 & Acura Integra 90-01

Improve your vehicles handling dynamics with the ASR swaybar kit. This is the perfect upgrade to bolt on to your existing ASR subframe brace. The machined billet aluminum brackets with polyurethane bushings ensures proper mounting and fitment to your ASR brace. This product was designed for longevity and performance under street and track driving conditions.*

ASR 24mm Swaybar (Street/Track)

The ASR 24mm swaybar is the perfect bar for a those looking for a startup setup. It features a swaybar that is the same dimensions and look as a OEM swaybar but is significantly stiffer due to its increased diameter.

ASR 1" Hollow Swaybar (Street/Track) (DISCONTINUED)

The ASR 1" hollow bar is the first of its kind. Featuring a hollowed out core this bar is significantly lighter than our 24mm swaybar. The 1" swaybar also keeps the same dimensions as a OEM swaybar but is even stiffer than our 24mm swaybar due to the increased diameter.

Swaybar Rate Comparison

     OEM ITR 22 mm Bar

          Measured bar rate:

          P1 = 51 N/mm (292 lbs/in)

          Bar weight: 3.78 kg (8.4 lbs)

     OEM ITR 23mm Bar

          Measured  bar rate:

          P1 = 60 N/mm (347 lbs/in)

     ASR Gray bar: 23.8mm (.937 in) Solid, 2 Position adjustable

          Measured bar rate:

          P1 = (414lbs/in)
          P2 = (507lbs/in)

          Red bar weight: 4.4 kg (9.7 lbs)

     ASR Red bar: 25.4 mm (1 in) Hollow, 3 position adjustable (DISCONTINUED)

          Measured bar rate:

          P1 = 73 N/mm (418 lbs/in)
          P2 = 94 N/mm (533 lbs/in)
          P3 = 111 N/mm (630 lbs/in)

         Red bar weight: 3.15 kg (7.0 lbs)

Contents:

1 - ASR 24mm Swaybar

2 - ASR D-bracket bushings

2 - ASR billet aluminum D-brackets

1 - Energy Suspension grease

*This kit does not come with ASR spherical endlinks

MADE IN U.S.A.

ASR Swaybar Rear 24mm - Honda Civic 88-95 & Acura Integra 90-01 fits the following vehicle(s):

• 1990 Acura Integra
• 1991 Acura Integra
• 1992 Acura Integra
• 1993 Acura Integra
• 1994 Acura Integra
• 1995 Acura Integra
• 1996 Acura Integra
• 1997 Acura Integra
• 1998 Acura Integra
• 1999 Acura Integra
• 2000 Acura Integra
• 2001 Acura Integra
• 1988 Honda Civic
• 1989 Honda Civic
• 1990 Honda Civic
• 1991 Honda Civic
• 1992 Honda Civic
• 1993 Honda Civic
• 1994 Honda Civic
• 1995 Honda Civic
• 1988 Honda CRX
• 1989 Honda CRX
• 1990 Honda CRX
• 1991 Honda CRX
